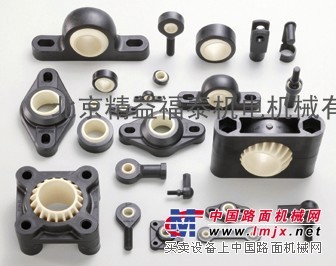

【“工程塑料轴承/“德国工程塑料轴承/防腐蚀酸碱塑料轴承”】

双杆端关节头轴承(EGZM)
EGZM-05-75  EGZM-06-50  EGZM-06-75
EGZM-08-60  EGZM-08-100
角支轴承(EGLM/KGLM)
EGLM-04 轴承尺寸 内径4外径12厚度5
EGLM-05 轴承尺寸 内径5外径14厚度6
EGLM-06 轴承尺寸 内径6外径14厚度6
EGLM-08 轴承尺寸 内径8外径16厚度8
EGLM-10 轴承尺寸 内径10外径19厚度9
EGLM-12 轴承尺寸 内径12外径22厚度10
EGLM-15 轴承尺寸 内径15外径26厚度12
EGLM-16 轴承尺寸 内径16外径28厚度13
EGLM-17 轴承尺寸 内径17外径30厚度14
EGLM-20 轴承尺寸 内径20外径35厚度16
EGLM-25 轴承尺寸 内径25外径42厚度20
EGLM-30 轴承尺寸 内径30外径47厚度22
KGLM-06 轴承尺寸 内径6外径16厚度9
KGLM-10 轴承尺寸 内径10外径22厚度14
KGLM-12 轴承尺寸 内径12外径26厚度16
KGLM-14 轴承尺寸 内径14外径28厚度19
KGLM-16 轴承尺寸 内径16外径32厚度21
KGLM-20 轴承尺寸 内径20外径40厚度25
KGLM-30 轴承尺寸 内径30外径55厚度37
法兰轴承(EFSM)
EFSM-05 EFSM-06
EFSM-08 EFSM-10
EFSM-12 EFSM-15
EFSM-16 EFSM-17
EFSM-20 EFSM-20
EFSM-25 EFSM-30
法兰轴承(EFOM)
EFOM-05 轴承尺寸 内径5外径33.8厚度8.5
EFOM-06 轴承尺寸 内径6外径33.8厚度8.5
EFOM-08 轴承尺寸 内径8外径44.2厚度10.5
EFOM-08J4 轴承尺寸 内径8外径44.2厚度10.5
EFOM-10 轴承尺寸 内径10外径52厚度12
EFOM-10J4 轴承尺寸 内径10外径52厚度12
EFOM-12J4 轴承尺寸 内径12外径56.7厚度13
EFOM-15J4 轴承尺寸 内径15外径68.6厚度15.5
EFOM-16 轴承尺寸 内径16外径72.6厚度17.5
EFOM-17 轴承尺寸 内径17外径74.6厚度18
EFOM-20J4 轴承尺寸 内径20外径89厚度20
EFOM-25J4 轴承尺寸 内径25外径101厚度25
EFOM-30J 轴承尺寸 内径30外径118厚度26
EFOM-30J4 轴承尺寸 内径30外径118厚度26
基座轴承(ESTM)
ESTM-16轴承尺寸 内径16外径50厚度13
ESTM-20轴承尺寸 内径20外径62厚度16
ESTM-25轴承尺寸 内径25外径72厚度20
ESTM-30轴承尺寸 内径30外径86厚度22
基座轴承(KSTM)
KSTM-06轴承尺寸 内径6外径43厚度9
KSTM-08轴承尺寸 内径8外径47厚度12
KSTM-10轴承尺寸 内径10外径62厚度14
KSTM-12轴承尺寸 内径12外径65厚度16
KSTM-14轴承尺寸 内径14外径82厚度19
KSTM-16轴承尺寸 内径16外径86厚度21
KSTM-20轴承尺寸 内径20外径98厚度25
KSTM-25轴承尺寸 内径25外径124厚度31
塑料关节轴承KBRM系列，KARM系列，KCRM系列，EBRM系列
KBRM-02 KBRM-03 KBRM-05 KBRM-06 KBRM-08 KBRM-10 KBRM-10F KBRM-12
KBRM-12F  KBRM-16    KBRM-16F  KBRM-20KBRM-20 M20    KBRM-22   KBRM-30KARM-06 KARM-08 KARM-10 KARM-10 KARM-12 KCRM-06J4 KCRM-08J4 KCRM-10J4 EBRM-04 EBRM-05 EBRM-06 EBRM-08 EBRM-10 EBRM-10F EBRM-15 EBRM-16 EBRM-17 EBRM-17F EBRM-20M20 EBRM-20
法兰轴承
GFL-12  GFL-14
GFL-16  GFL-20
GFL-25
端面轴承（T型）轴承
TM-0818-015
TM-1524-015 轴承尺寸 内径15外径24厚度1.5
TM-1630-015 轴承尺寸 内径16外径30厚度1.5
TM-1832-015 轴承尺寸 内径18外径32厚度1.5
TM-2442-015 轴承尺寸 内径24外径42厚度1.5
TM-3862-015 轴承尺寸 内径38外径62厚度1.5
法兰轴承（F型）轴承
FM-0304-05 轴承尺寸 内径3外径4.5厚度5
FM-0405-04 轴承尺寸 内径4外径5.5厚度4
FM-0405-06 轴承尺寸 内径4外径5.5厚度6
FM-0507-05 轴承尺寸 内径5外径7厚度5
FM-0608-06 轴承尺寸 内径6外径8厚度6
FM-0608-08 轴承尺寸 内径6外径8厚度8
FM-0810-09 轴承尺寸 内径8外径10厚度9.5
FM-0810-10 轴承尺寸 内径8外径10厚度10
FM-1012-12 轴承尺寸 内径10外径12厚度12
FM-1012-15 轴承尺寸 内径10外径12厚度15
FM-1214-12 轴承尺寸 内径12外径14厚度12
FM-1214-15 轴承尺寸 内径12外径14厚度15
FM-1416-12 轴承尺寸 内径14外径16厚度12
FM-1416-17 轴承尺寸 内径14外径16厚度17
FM-1517-12 轴承尺寸 内径15外径17厚度12
FM-1517-17 轴承尺寸 内径15外径17厚度17
FM-1618-12 轴承尺寸 内径16外径18厚度12
FM-1618-17 轴承尺寸 内径16外径18厚度17
FM-1820-12 轴承尺寸 内径18外径20厚度12
FM-1820-17 轴承尺寸 内径18外径20厚度17
FM-2023-21 轴承尺寸 内径20外径23厚度21.5
FM-2528-21 轴承尺寸 内径25外径28厚度21
FM-3034-26 轴承尺寸 内径30外径34厚度26
滚动轴承（S型）轴承
SM-0205-02 轴承尺寸 内径2外径5厚度2.5
SM-0304-05 轴承尺寸 内径3外径4.5厚度5
SM-0304-06 轴承尺寸 内径3外径4.5厚度6
SM-0405-04 轴承尺寸 内径4外径5.5厚度4
SM-0507-05 轴承尺寸 内径5外径7厚度5
SM-0607-06 轴承尺寸 内径6外径7厚度6
SM-0608-06 轴承尺寸 内径6外径8厚度6
SM-0810-08 轴承尺寸 内径8外径10厚度8
SM-0810-10 轴承尺寸 内径8外径10厚度10
SM-1012-10 轴承尺寸 内径10外径12厚度10
SM-1214-10 轴承尺寸 内径12外径14厚度10
SM-1214-20 轴承尺寸 内径12外径14厚度20
SM-1416-10 轴承尺寸 内径14外径16厚度10
SM-1416-15 轴承尺寸 内径14外径16厚度15
SM-1517-12 轴承尺寸 内径15外径17厚度12
SM-1517-15 轴承尺寸 内径15外径17厚度15
SM-1517-20 轴承尺寸 内径15外径17厚度20
SM-1618-12 轴承尺寸 内径16外径18厚度12
SM-1618-15 轴承尺寸 内径16外径18厚度15
SM-1618-20 轴承尺寸 内径16外径18厚度20
SM-2022-20 轴承尺寸 内径20外径22厚度20
SM-2023-20 轴承尺寸 内径20外径23厚度20
SM-2023-25 轴承尺寸 内径20外径23厚度25
SM-2528-20 轴承尺寸 内径25外径28厚度20
SM-2528-30 轴承尺寸 内径25外径28厚度30
SM-3034-30 轴承尺寸 内径30外径34厚度30
SM-4044-40 轴承尺寸 内径40外径44厚度40
SM-4550-30 轴承尺寸 内径45外径50厚度30
塑料直线轴承
RJUM-01-10  RJUM-01-12  RJUM-01-16  RJUM-01-20  RJUM-01-25  RJUM-01-30  RJUM-01-40
RJM-01-08  RJM-01-10  RJM-01-12  RJM-01-16  RJM-01-20  RJM-01-25  RJM-01-30  RJM-01-40
TJUM-01-20  TJUM-01-40  TJUM-03-40RJUM-03-10  RJUM-03-16  RJUM-03-20  RJUM-03-25  RJUM-03-30  RJUM-03-50
RJUM-02-08  RJUM-02-10  RJUM-02-12  RJUM-02-16  RJUM-02-20  RJUM-02-25  RJUM-02-30  RJUM-02-40  RJUM-02-50
RJUM-05-16  RJUM-05-25  RJUM-05-30  RJUM-05-50  RJUM-06-20
OJUM-01-10  OJUM-01-12  OJUM-01-16  OJUM-01-20  OJUM-01-25
GSM-1011-06 10.0 +0.013 +0.049 11.0 6.0
 GSM-1011-10 10.0 +0.013 +0.049 11.0 10.0
 GSM-1011-25 10.0 +0.013 +0.049 11.0 25.0
 GSM-1011-30 10.0 +0.013 +0.049 11.0 30.0
 GSM-1012-04 10.0 +0.025 +0.083 12.0 4.0
 GSM-1012-045 10.0 +0.025 +0.083 12.0 4.5
 GSM-1012-05 10.0 +0.025 +0.083 12.0 5.0
 GSM-1012-06 10.0 +0.025 +0.083 12.0 6.0
 GSM-1012-07 10.0 +0.025 +0.083 12.0 7.0
 GSM-1012-08 10.0 +0.025 +0.083 12.0 8.0
 GSM-1012-09 10.0 +0.025 +0.083 12.0 9.0
 GSM-1012-10 10.0 +0.025 +0.083 12.0 10.0
 GSM-1012-12 10.0 +0.025 +0.083 12.0 12.0
 GSM-1012-14 10.0 +0.025 +0.083 12.0 14.0
 GSM-1012-15 10.0 +0.025 +0.083 12.0 15.0
 GSM-1012-17 10.0 +0.025 +0.083 12.0 17.0
 GSM-1012-20 10.0 +0.025 +0.083 12.0 20.0
 GSM-1213-12 12.0 +0.016 +0.059 13.0 12.0
 GSM-1213-15 12.0 +0.016 +0.059 13.0 15.0
 GSM-1214-04 12.0 +0.032 +0.102 14.0 4.0
 GSM-1214-05 12.0 +0.032 +0.102 14.0 5.0
 GSM-1214-06 12.0 +0.032 +0.102 14.0 6.0
 GSM-1214-08 12.0 +0.032 +0.102 14.0 8.0
 GSM-1214-10 12.0 +0.032 +0.102 14.0 10.0
 GSM-1214-12 12.0 +0.032 +0.102 14.0 12.0
 GSM-1214-14 12.0 +0.032 +0.102 14.0 14.0
 GSM-1214-15 12.0 +0.032 +0.102 14.0 15.0
 GSM-1214-20 12.0 +0.032 +0.102 14.0 20.0
 GSM-1214-25 12.0 +0.032 +0.102 14.0 25.0
 GSM-1215-06 12.0 +0.032 +0.102 15.0 6.0
 GSM-1215-22 12.0 +0.032 +0.102 15.0 22.0
 GSM-1216-10 12.0 +0.050 +0.160 16.0 10.0
 GSM-1216-20 12.0 +0.050 +0.160 16.0 20.0
 GSM-1315-070 13.0 +0.032 +0.102 15.0 7.0
 GSM-1315-075 13.0 +0.032 +0.102 15.0 7.5
 GSM-1315-10 13.0 +0.032 +0.102 15.0 10.0
 GSM-1315-15 13.0 +0.032 +0.102 15.0 15.0
 GSM-1315-20 13.0 +0.032 +0.102 15.0 20.0
 GSM-1315-25 13.0 +0.032 +0.102 15.0 25.0
 GSM-1416-03 14.0 +0.032 +0.102 16.0 3.0
 GSM-1416-06 14.0 +0.032 +0.102 16.0 6.0
 GSM-1416-08 14.0 +0.032 +0.102 16.0 8.0
 Part number d1 d1-Tolerance* d2 b1
 h13
 GSM-1416-10 14.0 +0.032 +0.102 16.0 10.0
 GSM-1416-12 14.0 +0.032 +0.102 16.0 12.0
 GSM-1416-15 14.0 +0.032 +0.102 16.0 15.0
 GSM-1416-20 14.0 +0.032 +0.102 16.0 20.0
 GSM-1416-25 14.0 +0.032 +0.102 16.0 25.0
 GSM-1516-15 15.0 +0.016 +0.059 16.0 15.0
 GSM-1517-04 15.0 +0.032 +0.102 17.0 4.0
 GSM-1517-10 15.0 +0.032 +0.102 17.0 10.0
 GSM-1517-12 15.0 +0.032 +0.102 17.0 12.0
 GSM-1517-15 15.0 +0.032 +0.102 17.0 15.0
 GSM-1517-20 15.0 +0.032 +0.102 17.0 20.0
 GSM-1517-25 15.0 +0.032 +0.102 17.0 25.0
 GSM-1618-055 16.0 +0.032 +0.102 18.0 5.5
 GSM-1618-08 16.0 +0.032 +0.102 18.0 8.0
 GSM-1618-10 16.0 +0.032 +0.102 18.0 10.0
 GSM-1618-12 16.0 +0.032 +0.102 18.0 12.0
 GSM-1618-13.5 16.0 +0.032 +0.102 18.0 13.5
 GSM-1618-15 16.0 +0.032 +0.102 18.0 15.0
 GSM-1618-20 16.0 +0.032 +0.102 18.0 20.0
 GSM-1618-25 16.0 +0.032 +0.102 18.0 25.0
 GSM-1618-30 16.0 +0.032 +0.102 18.0 30.0
 GSM-1618-50 16.0 +0.032 +0.102 18.0 50.0
 GSM-1820-10 18.0 +0.032 +0.102 20.0 10.0
 GSM-1820-12 18.0 +0.032 +0.102 20.0 12.0
 GSM-1820-15 18.0 +0.032 +0.102 20.0 15.0
 GSM-1820-20 18.0 +0.032 +0.102 20.0 20.0
 GSM-1820-25 18.0 +0.032 +0.102 20.0 25.0
 GSM-1820-45 18.0 +0.032 +0.102 20.0 45.0
 GSM-1922-06 19.0 +0.040 +0.124 22.0 6.0
 GSM-1922-28 19.0 +0.040 +0.124 22.0 28.0
 GSM-1922-35 19.0 +0.040 +0.124 22.0 35.0
 GSM-2021-20 20.0 +0.020 +0.072 21.0 20.0
 GSM-2022-03 20.0 +0.040 +0.124 22.0 3.0
 GSM-2022-08 20.0 +0.040 +0.124 22.0 8.0
 GSM-2022-105 20.0 +0.040 +0.124 22.0 10.5
 GSM-2022-15 20.0 +0.040 +0.124 22.0 15.0
 GSM-2022-20 20.0 +0.040 +0.124 22.0 20.0
 GSM-2022-22 20.0 +0.040 +0.124 22.0 22.0
 GSM-2022-30 20.0 +0.040 +0.124 22.0 30.0
 GSM-2023-10 20.0 +0.040 +0.124 23.0 10.0
 GSM-2023-15 20.0 +0.040 +0.124 23.0 15.0
 GSM-2023-20 20.0 +0.040 +0.124 23.0 20.0
 GSM-2023-23 20.0 +0.040 +0.124 23.0 23.0
 GSM-2023-24 20.0 +0.040 +0.124 23.0 24.0
 GSM-2023-25 20.0 +0.040 +0.124 23.0 25.0
 GSM-2023-30 20.0 +0.040 +0.124 23.0 30.0
 GSM-2224-10 22.0 +0.040 +0.124 24.0 10.0
 GSM-2224-15 22.0 +0.040 +0.124 24.0 15.0
 GSM-2224-17 22.0 +0.040 +0.124 24.0 17.0
 GSM-2224-20 22.0 +0.040 +0.124 24.0 20.0
 GSM-2224-30 22.0 +0.040 +0.124 24.0 30.0
 GSM-2225-15 22.0 +0.040 +0.124 25.0 15.0
 GSM-2225-20 22.0 +0.040 +0.124 25.0 20.0
 GSM-2225-25 22.0 +0.040 +0.124 25.0 25.0
 GSM-2225-30 22.0 +0.040 +0.124 25.0 30.0
 GSM-2427-06 24.0 +0.040 +0.124 27.0 6.0
 GSM-2427-15 24.0 +0.040 +0.124 27.0 15.0
 GSM-2427-20 24.0 +0.040 +0.124 27.0 20.0
 GSM-2427-25 24.0 +0.040 +0.124 27.0 25.0
 GSM-2427-30 24.0 +0.040 +0.124 27.0 30.0
 GSM-2526-25 25.0 +0.020 +0.072 26.0 25.0
 GSM-2528-15 25.0 +0.040 +0.124 28.0 15.0
 GSM-2528-20 25.0 +0.040 +0.124 28.0 20.0
 GSM-2528-24 25.0 +0.040 +0.124 28.0 24.0
 GSM-2528-25 25.0 +0.040 +0.124 28.0 25.0
 GSM-2528-30 25.0 +0.040 +0.124 28.0 30.0
 GSM-2528-35 25.0 +0.040 +0.124 28.0 35.0
 GSM-2528-50 25.0 +0.040 +0.124 28.0 50.0
 GSM-2630-16 26.0 +0.040 +0.124 30.0 16.0
 GSM-2730-05 27.0 +0.040 +0.124 30.0 5.0
 GSM-2832-105 28.0 +0.040 +0.124 32.0 10.5
 GSM-2832-12 28.0 +0.040 +0.124 32.0 12.0
 GSM-2832-15 28.0 +0.040 +0.124 32.0 15.0
 GSM-2832-20 28.0 +0.040 +0.124 32.0 20.0
 GSM-2832-23 28.0 +0.040 +0.124 32.0 23.0
 GSM-2832-25 28.0 +0.040 +0.124 32.0 25.0
 GSM-2832-30 28.0 +0.040 +0.124 32.0 30.0
 GSM-3031-12 30.0 +0.020 +0.072 31.0 12.0
 GSM-3031-30 30.0 +0.020 +0.072 31.0 30.0
 GSM-3034-15 30.0 +0.040 +0.124 34.0 15.0
 GSM-3034-20 30.0 +0.040 +0.124 34.0 20.0
 Part number d1 d1-Tolerance* d2 b1
 h13
 GSM-3034-24 30.0 +0.040 +0.124 34.0 24.0
 GSM-3034-25 30.0 +0.040 +0.124 34.0 25.0
 GSM-3034-30 30.0 +0.040 +0.124 34.0 30.0
 GSM-3034-35 30.0 +0.040 +0.124 34.0 35.0
 GSM-3034-40 30.0 +0.040 +0.124 34.0 40.0
 GSM-3034-525 30.0 +0.040 +0.124 34.0 52.5
 GSM-3236-20 32.0 +0.050 +0.150 36.0 20.0
 GSM-3236-30 32.0 +0.050 +0.150 36.0 30.0
 GSM-3236-40 32.0 +0.050 +0.150 36.0 40.0
 GSM-3539-14 35.0 +0.050 +0.150 39.0 14.0
 GSM-3539-20 35.0 +0.050 +0.150 39.0 20.0
 GSM-3539-25 35.0 +0.050 +0.150 39.0 25.0
 GSM-3539-30 35.0 +0.050 +0.150 39.0 30.0
 GSM-3539-40 35.0 +0.050 +0.150 39.0 40.0
 GSM-3539-50 35.0 +0.050 +0.150 39.0 50.0
 GSM-3640-20 36.0 +0.050 +0.150 40.0 20.0
 GSM-3741-20 37.0 +0.050 +0.150 41.0 20.0
 GSM-4044-10 40.0 +0.050 +0.150 44.0 10.0
 GSM-4044-16 40.0 +0.050 +0.150 44.0 16.5
 GSM-4044-20 40.0 +0.050 +0.150 44.0 20.0
 GSM-4044-30 40.0 +0.050 +0.150 44.0 30.0
 GSM-4044-40 40.0 +0.050 +0.150 44.0 40.0
 GSM-4044-50 40.0 +0.050 +0.150 44.0 50.0
 GSM-4246-40 42.0 +0.050 +0.150 46.0 40.0
 GSM-4550-22 45.0 +0.050 +0.150 50.0 22.0
 GSM-4550-235 45.0 +0.050 +0.150 50.0 23.5
 GSM-4550-30 45.0 +0.050 +0.150 50.0 30.0
 GSM-4550-38 45.0 +0.050 +0.150 50.0 38.0
 GSM-4550-40 45.0 +0.050 +0.150 50.0 40.0
 GSM-4550-50 45.0 +0.050 +0.150 50.0 50.0
 GSM-5055-20 50.0 +0.050 +0.150 55.0 20.0
 GSM-5055-25 50.0 +0.050 +0.150 55.0 25.0
 GSM-5055-30 50.0 +0.050 +0.150 55.0 30.0
 GSM-5055-40 50.0 +0.050 +0.150 55.0 40.0
 GSM-5055-50 50.0 +0.050 +0.150 55.0 50.0
 GSM-5257-20 52.0 +0.060 +0.180 57.0 20.0
 GSM-5560-20 55.0 +0.060 +0.180 60.0 20.0
 GSM-5560-40 55.0 +0.060 +0.180 60.0 40.0
 GSM-5560-50 55.0 +0.060 +0.180 60.0 50.0
 GSI-0203-06 1/8 3/16 3/8 .1269 .1251 .1878 .1873 .1243 .1236
 GSI-0304-04 3/16 1/4 1/4 .1892 .1873 .2503 .2497 .1865 .1858
 GSI-0304-06 3/16 1/4 3/8 .1892 .1873 .2503 .2497 .1865 .1858
 GSI-0304-08 3/16 1/4 1/2 .1892 .1873 .2503 .2497 .1865 .1858
 GSI-0405-04 1/4 5/16 1/4 .2521 .2498 .3128 .3122 .2490 .2481
 GSI-0405-05 1/4 5/16 5/16 .2521 .2498 .3128 .3122 .2490 .2481
 GSI-0405-06 1/4 5/16 3/8 .2521 .2498 .3128 .3122 .2490 .2481
 GSI-0405-08 1/4 5/16 1/2 .2521 .2498 .3128 .3122 .2490 .2481
 GSI-0405-10 1/4 5/16 5/8 .2521 .2498 .3128 .3122 .2490 .2481
 GSI-0405-12 1/4 5/16 3/4 .2521 .2498 .3128 .3122 .2490 .2481
 GSI-0506-04 5/16 3/8 1/4 .3148 .3125 .3753 .3747 .3115 .3106
 GSI-0506-06 5/16 3/8 3/8 .3148 .3125 .3753 .3747 .3115 .3106
 GSI-0506-08 5/16 3/8 1/2 .3148 .3125 .3753 .3747 .3115 .3106
 GSI-0506-12 5/16 3/8 3/4 .3148 .3125 .3753 .3747 .3115 .3106
 GSI-0607-04 3/8 15/32 1/4 .3773 .3750 .4691 .4684 .3740 .3731
 GSI-0607-06 3/8 15/32 3/8 .3773 .3750 .4691 .4684 .3740 .3731
 GSI-0607-08 3/8 15/32 1/2 .3773 .3750 .4691 .4684 .3740 .3731
 GSI-0607-12 3/8 15/32 3/4 .3773 .3750 .4691 .4684 .3740 .3731
 GSI-0608-08 3/8 8/16 1/2 .3783 .3760 .5015 .5010 .3750 .3741
 GSI-0608-12 3/8 8/16 3/4 .3773 .3750 .5015 .5010 .3750 .3741
 GSI-0708-04 7/16 17/32 1/4 .4406 .4379 .5316 .5309 .4365 .4355
 GSI-0708-08 7/16 17/32 1/2 .4406 .4379 .5316 .5309 .4365 .4355
 GSI-0809-03 1/2 19/32 3/16 .5030 .5003 .5941 .5934 .4990 .4980
 GSI-0809-04 1/2 19/32 1/4 .5030 .5003 .5941 .5934 .4990 .4980
 GSI-0809-06 1/2 19/32 3/8 .5030 .5003 .5941 .5934 .4990 .4980
 GSI-0809-08 1/2 19/32 1/2 .5030 .5003 .5941 .5934 .4990 .4980
 GSI-0809-10 1/2 19/32 5/8 .5030 .5003 .5941 .5934 .4990 .4980
 GSI-0809-16 1/2 19/32 1 .5030 .5003 .5941 .5934 .4990 .4980
 GSI-0810-08 1/2 5/8 1/2 .5040 .5013 .6260 .6250 .5000 .4990
 GSI-0810-12 1/2 5/8 3/4 .5040 .5013 .6260 .6250 .5000 .4990
 GSI-0910-06 9/16 21/32 3/8 .5655 .5627 .6566 .6559 .5615 .5605
 GSI-0910-08 9/16 21/32 1/2 .5655 .5627 .6566 .6559 .5615 .5605
 GSI-0910-10 9/16 21/32 5/8 .5655 .5627 .6566 .6559 .5615 .5605
 GSI-1011-06 5/8 23/32 3/8 .6280 .6253 .7192 .7184 .6240 .6230
 GSI-1011-08 5/8 23/32 1/2 .6280 .6253 .7192 .7184 .6240 .6230
 GSI-1011-10 5/8 23/32 5/8 .6280 .6253 .7192 .7184 .6240 .6230
 GSI-1011-12 5/8 23/32 3/4 .6280 .6253 .7192 .7184 .6240 .6230
 GSI-1011-16 5/8 23/32 1 .6280 .6253 .7192 .7184 .6240 .6230
 GSI-1011-20 5/8 23/32 1 1/4 .6280 .6253 .7192 .7184 .6240 .6230
 GSI-1011-30 5/8 23/32 1 7/8 .6280 .6253 .7192 .7184 .6240 .6230
 GSI-1012-08 5/8 3/4 1/2 .6290 .6263 .7510 .7500 .6250 .6240
 GSI-1012-16 5/8 3/4 1 .6290 .6263 .7510 .7500 .6250 .6240
 GSI-1112-14 11/16 25/32 7/8 .6906 .6879 .7817 .7809 .6865 .6855
 GSI-1214-02 3/4 7/8 1/8 .7541 .7505 .8755 .8747 .7491 .7479
 GSI-1214-06 3/4 7/8 3/8 .7541 .7505 .8755 .8747 .7491 .7479
 GSI-1214-08 3/4 7/8 1/2 .7541 .7505 .8755 .8747 .7491 .7479
 GSI-1214-12 3/4 7/8 3/4 .7541 .7505 .8755 .8747 .7491 .7479
 GSI-1214-16 3/4 7/8 1 .7541 .7505 .8755 .8747 .7491 .7479
 GSI-1214-20 3/4 7/8 1 1/4 .7541 .7505 .8755 .8747 .7491 .7479
 GSI-1214-24 3/4 7/8 1 1/2 .7541 .7505 .8755 .8747 .7491 .7479
 GSI-1416-06 7/8 1 3/8 .8791 .8757 1.0005 .9997 .8741 .8729
 GSI-1416-08 7/8 1 1/2 .8791 .8757 1.0005 .9997 .8741 .8729
 GSI-1416-10 7/8 1 5/8 .8791 .8757 1.0005 .9997 .8741 .8729
 GSI-1416-12 7/8 1 3/4 .8791 .8757 1.0005 .9997 .8741 .8729
 GSI-1416-16 7/8 1 1 .8791 .8757 1.0005 .9997 .8741 .8729
 GSI-1416-24 7/8 1 1 1/2 .8791 .8757 1.0005 .9997 .8741 .8729
 GSI-1618-08 1 1 1/8 1/2 1.0041 1.0007 1.1255 1.1247 .9991 .9979
 GSI-1618-12 1 1 1/8 3/4 1.0041 1.0007 1.1255 1.1247 .9991 .9979
 GSI-1618-16 1 1 1/8 1 1.0041 1.0007 1.1255 1.1247 .9991 .9979
 GSI-1618-20 1 1 1/8 1 1/4 1.0041 1.0007 1.1255 1.1247 .9991 .9979
 GSI-1618-24 1 1 1/8 1 1/2 1.0041 1.0007 1.1255 1.1247 .9991 .9979
 GSI-1618-33 1 1 1/8 2 1/16 1.0041 1.0007 1.1255 1.1247 .9991 .9979
 GSI-1820-12 1 1/8 1 9/32 3/4 1.1288 1.1254 1.2818 1.2808 1.1238 1.1226
 GSI-1820-24 1 1/8 1 9/32 1 1/2 1.1288 1.1254 1.2818 1.2808 1.1238 1.1226
 GSI-2022-12 1 1/4 1 13/32 3/4 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472
 GSI-2022-14 1 1/4 1 13/32 7/8 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472
 GSI-2022-16 1 1/4 1 13/32 1 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472
 GSI-2022-20 1 1/4 1 13/32 1 1/4 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472
 GSI-2022-24 1 1/4 1 13/32 1 1/2 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472
 GSI-2224-16 1 3/8 1 17/32 1 1.3798 1.3758 1.5318 1.5308 1.3738 1.3722
 GSI-2224-24 1 3/8 1 17/32 1 1/2 1.3798 1.3758 1.5318 1.5308 1.3738 1.3722
 GSI-2224-26 1 3/8 1 17/32 1 5/8 1.3798 1.3758 1.5318 1.5308 1.3738 1.3722
 GSI-2426-06 1 1/2 1 21/32 3/8 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972
 GSI-2426-07 1 1/2 1 21/32 7/16 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972
 GSI-2426-08 1 1/2 1 21/32 1/2 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972
 GSI-2426-12 1 1/2 1 21/32 3/4 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972
 GSI-2426-16 1 1/2 1 21/32 1 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972
 GSI-2426-24 1 1/2 1 21/32 1 1/2 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972
 GSI-2629-20 1 5/8 1 25/32 1 1/4 1.6297 1.6258 1.7818 1.7808 1.6238 1.6222
 GSI-2831-16 1 3/4 1 15/16 1 1.7547 1.7505 1.9381 1.9371 1.7487 1.7471
 GSI-2831-24 1 3/4 1 15/16 1 1/2 1.7547 1.7505 1.9381 1.9371 1.7487 1.7471
 GSI-2831-32 1 3/4 1 15/16 2 1.7547 1.7505 1.9381 1.9371 1.7487 1.7471
 GSI-2831-40 1 3/4 1 15/16 2 1/2 1.7547 1.7505 1.9381 1.9371 1.7487 1.7471
 GSI-2831-48 1 3/4 1 15/16 3 1.7547 1.7505 1.9381 1.9371 1.7487 1.7471
 GSI-3235-16 2 2 3/16 1 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969
 GSI-3235-24 2 2 3/16 1 1/2 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969
 GSI-3235-32 2 2 3/16 2 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969
 GSI-3639-32 2 1/4 2 7/16 2 2.2577 2.2531 2.4377 2.4365 2.2507 2.2489
 GSI-4043-32 2 2/4 2 11/16 2 2.5082 2.5035 2.6881 2.6869 2.5000 2.4999
 GSI-4447-32 2 3/4 2 15/16 2 2.7570 2.7523 2.9370 2.9358 2.7500 2.7490
 GSI-4851-32 3 3 3/16 2 3.0070 3.0023 3.1870 3.1858 3.0000 2.9990“串联式直线轴承FJUMT-01/02”
供应型号如下：
FJUMT-01-08 FJUMT-01-10 FJUMT-01-12 FJUMT-01-16 FJUMT-01-20  FJUMT-01-25 FJUMT-01-30 FJUMT-01-40 FJUMT-01-50
FJZMT-02-08 FJUMT-02-10 FJUMT-02-12 FJUMT-02-16 FJUMT-02-20  FJUMT-02-25 FJUMT-02-30 FJUMT-02-40 FJUMT-02-50

“标准型枕块式直线滑动轴承OJUM-06”
供应型号如下：
OJUM-06-12 OJUM-06-16 OJUM-06-20 OJUM-06-25 OJUM-06-30 OJUM-06-40 OJUM-06-50
OJUM-06-12 LL OJUM-06-16 LL OJUM-06-20 LL OJUM-06-25 LL OJUM-06-30 LL OJUM-06-40 LL OJUM-06-50 LL
“法兰直线滑动轴承FJUM-01”
供应型号如下：
FJZM-01-08 FJUM-01-10 FJUM-01-12 FJUM-01-16 FJUM-01-20 FJUM-01-25  FJUM-01-30 FJUM-01-40 FJUM-01-50
FJZM-02-08 FJUM-02-10 FJUM-02-12 FJUM-02-16 FJUM-02-20 FJUM-02-25 FJUM-02-30 FJUM-02-40 FJUM-02-50
“铝轴AWM/铝合金支撑轴AWMU”
供应型号如下：
AWM-25  AWMP-10  AWMP-16  AWMU-30,L
“梯形导向螺母”
供应型号如下：
WFRM-2525TR10x2 WFRM-2835TR12x3 WFRM-2835TR14x4 WFRM-2835TR16x4    WFRM-2835TR18x4 WFRM-3244TR20x4 WFRM-3244TR24x5 WFRM-3846TR26x5 WFRM-3846TR28x5 WFRM-3846TR30x6 JFRM-2525TR10x2 JFRM-2835TR12x3   JFRM-2835TR14x4 JFRM-2835TR16x4 JFRM-2835TR18x4 JFRM-3244TR20x4    JFRM-3244TR24x5 JFRM-3846TR26x5 JFRM-3846TR28x5 JFRM-3846TR30x6

直线滑动轴承SHTC-成套系统
SHTC-12-AWM SHTC-20-AWM SHTC-30-AWM SHTC-40-AWM SHTC-40-SWM SHTC-50-AWM SHTC-50-SWM SHTC-12-SWM SHTC-20-SWM SHTC-30-SWM SHTC-12-EWM    SHTC-20-EWM  SHTC-30-EWM
