我公司长期供应洛阳牌YZC6B型压路机

我公司长期供应洛阳牌YZC6B型压路机

价格：

￥

15000元/ 台

共被查看 239 次

更新日期:2011-10-31

有效期至:2012-04-28

产品品牌：

规格型号：YZC6B

价格：15000元/台

所在地区 : 河南洛阳

产品分类 : 压路机

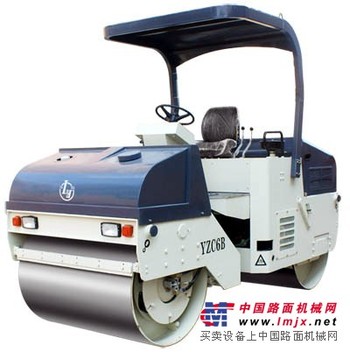

YZC6B Tandem Vibratory Roller (6ton)

YZC6B双钢轮振动压路机

该机采用齿轮侧传动，两速驱动行走。液压振动，液压助力转向。前后铰接，单片开式主离合器片，传动扭矩大，性能可靠。

The two-wheel tandem vibratory roller is a kind of mechanically driven hydraulic vibratory roller which is manufactured by our company in accordance with advanced foreign technologies and on the basis of selecting top-quality domestic critical parts and components. this roller has many advantages,such as strong engine power output capacity,large power output reserve capacity,wide rolling wheel,high operation efficiency,and novel design.It has compact structure,reasonable layout and beautiful shape.
The front wheels are hydraulic vibration while the rear wheels are machanically driven.It adopts the Changchai ZN490Q diesel engine,which is outstanding in performance and easy to start.The rear wheels adopts the gear transmission driving mode, which is safe and reliable.It is extremely convenient to service and maintainence.The master cluth is of single-plate open normally engaged type.the transmission torque is large and performance is reliable.Gear wheel transmission two speeds drive;Hydrostatic steering;Hydrostatic vibration;The front and the rear articulated.

主要参数Main features：

型号	MODEL	YZC6B
工作质量	Operating mass	6000kg
激振力	Inspire force	60kN
振动频率	Vibration frequency	50Hz
理论振幅	Vibration amplitude	0.5mm
小离地间隙	Min. ground clearance	386mm
爬坡能力	Grade ability	20%
振动轮直径	Drum diameter	950mm
振动轮宽度	Drum width	1250mm
行走速度	Travel speed	2.5km/h 7km/h
发动机型号	Engine model	ChangchaiZN490Q
功率/扭矩	Engine power/Max. torque	33.5kw/137N.m
外形尺寸	Dimension	3460×1480×2730mm
洒水箱容量	Sprinkler tank capacity	180L
