LMT5310TXF稀浆封层车

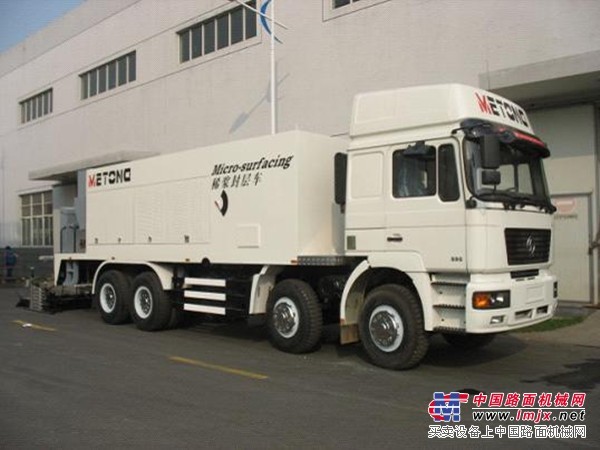

LMT5310TXF Micro-surfacing Paver

稀浆封层车主要是用于增强路面的摩擦力，修补路面的裂缝、车辙以及其它原因而损坏的路面。主要被用于增强路面的抗湿滑性能以及防水性能。稀浆封层车被广泛用于普通稀浆封层施工，改性稀浆封层施工等。

Micro-surfacing is the solution to reducing resistance, cracks, rutting and other deteriorations on the road surface. It is applied to enhance the road anti-slippery performance, water proofness, Micro-surfacing equipment is widely used in construction workmanship in common slurry seal, modified slurry seal etc.

稀浆封层车的应用简介

Introduction and Application of Micro-surfacing

LMT5310TXF稀浆封层车是美通在2009年新研发出来的以款设备。于目前市场上的同类产品相比，美通的LMT5310TXF稀浆封层车更高效，更可靠以及使用寿命长。该产品之所以具有高品质是因为它采用了先进的技术以及使用了耐用材料，其中大部分配件都是从国外进口的。

Micro-Surfacing Paver LMT5310TXF is a METONG brand product newly-developed by METONG Corporation in 2009. In comparison to existing similar products locally, METONG LMT5310TXF is more efficient, reliable and has a long life span. The product has high quality in its nature as it was manufactured with advanced technology and made with high durable materials which are imported as well as local materials.

 主要技术参数

Main Technical Parameters

型号

Model                                                LMT5310TXF

 底盘型号

Chassis model                             SX1315NR366

发动机型号

Engine model                                WP10.336N

发动机生产厂家                               潍柴动力

Engine manufacturer                     weichai

发动机功率（kw）

Engine power (kw)                           247

辅助功率 (kw)

Auxiliary power (kw)                             97

摊铺宽度（mm）

Paver width (mm)                           2500-4000

水箱容积（L）

Capacity of water tank (L)               4000

石料箱容积（m³）

capacity of mineral bin(m³）             10

添加剂箱容积（L）

Capacity of additives tank (L)             230

乳化沥青箱容积（L ）

Emulsion bitumen tank (L)                4000

工作速度（km/h）

Working speed(km/h)                         2.3~2.5

生产能力 （T/h）

Max. Productivity（T/h）                     120T/h
