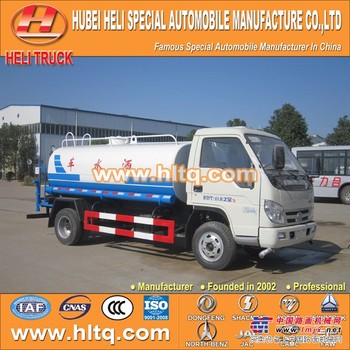

Vehicle parameters www.hltq.com |
||||
Vehicle Model |
HLQ5073GSSB |
Vehicle Brand |
HELI |
|
Overall dimensions |
5990X1955X2300mm |
Curb weight |
3200kg |
|
Tank dimensions |
3500×1700×1280mm |
Tank volume |
5000L |
|
Manufacturer |
Hubei Heli Special Automobile Manufacture Co.,Ltd |
|||
Chassis parameters www.hltq.com |
|||||
Chassis model |
BJ1073VEJEA-A |
Chassis brand |
FOTON |
||
Overall dimensions |
5875x1915x2150mm |
Wheel base |
3360mm |
||
Front/rear wheel track |
1415/1485mm |
Front/rear suspension |
1085/1430mm |
||
Approach/departure angle |
23/19° |
Maximum speed |
95km/h |
||
Chassis Manufacturer |
BEIQI FOTON MOTOR CO.,LTD |
||||
Cab |
Configuration |
D1695 single row cab,allowable 2 passengers,with warm air,all English signs in car body, English instruction ,international general accessories,double front windshield,power switch |
|||
Color |
White,other color is optional |
||||
Engine |
Model |
4DW91-63NG2 |
|||
Emission |
Euro 2 |
||||
Type |
4 cylinders,in-line,turbo charger,diesel engine |
||||
Rated power |
98hp |
||||
Displacement |
2545ml |
||||
Bore x stroke |
90x100mm |
||||
Manufacturer |
Wuxi Diesel Engine Branch |
||||
Tire |
Size |
6.50-16 Double star nylon tire |
|||
Number |
6+1 nos |
||||
Fuel tank |
70L iron oil tank |
||||
Rear axle |
4.0 tons |
||||
Drive form |
4X2 |
||||
Rated voltage |
Camel brand,24V,DC |
||||
Transmissions |
5 speed forward 1 reverse |
||||
Steering device |
Steering wheel |
||||
Steering wheel |
Left hand drive |
||||
Selective configuration |
Steel wire tire,air conditioner |
||||
If there is a slight change in the chassis parameters above,please take the actual product as the standard |
|||||
Water tank structure parameters www.hltq.com |
||||||||||||||||||||||
Tank dimensions |
3500×
