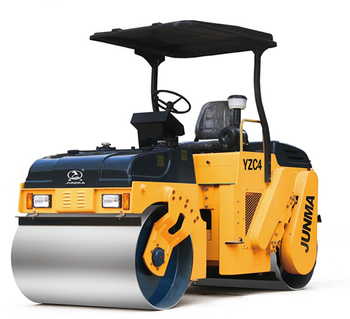

骏马YZC4/YZDC4高原型双钢轮振动/振动振荡压路机

技术参数

YZC4/YZDC4高原型双钢轮振动/振动振荡压路机

YZC4/YZDC4 HIGHLAND TYPE DOUBLE DRUM





项目	item	单位 unit	YZC4	项目	单位 unit	YZDC4
工作质量	Operating Weight	kg	4000	Operating Weight	kg	4100
压实宽度	Rolling width	mm	1300	Rolling width	mm	1300
振动频率	Vibration frequency	Hz	50	vibration/oscillation  frequency	Hz	50
名义振幅	Theoretical amplitude of vibration	mm	0.5	Theoretical amplitude of  vibration/oscillation	mm	0.5/0.35
激振力	Exciting force	kN	40	Exciting force/Exciting Torque	kN/ kN.m	40/13
行驶速度	Travel speed	km/h	2.5/7.5	Travel speed	km/h	2.5/7.5
发动机型号	Engine model		4L88	Engine model		4L88
发动机额定功率/转速	Engine power/speed	kW / r/min	62/2600	Engine power/speed	kW / r/min	62/2600
外形尺寸 （长×宽×高）	Overall dimensions  (mm) （LWH）	mm	3180×1460×2560	Overall dimensions  (mm) （LWH）	mm	3180×1460×2560

性能特点

适用范围

适用于城市道路、城际及县乡公路、水利工程、体育和其它工业场地等一般路面

沥青面层的压实和修补；

振动振荡机适用于桥面等不宜采用振动压实场地的沥青面层压实和修补;

更适合于高海拔地区的碾压作业。

Applications

Compacting and repairing the general road base and asphalt pavement in city road, inter-city and township road, water conservancy project, sports and other industrial site and so on. The vibratory oscillatory roller is suitable for compacting and repairing of bridge surface asphalt pavement which is unfit to compact by vibratory roller. Vibratory oscillatory roller is more suitable for rolling compaction of high altitude localities.

性能特点

1、机械驱动，两档行驶速度；

2、振动机：液压振动，电控起振，激振力大，压实效率高；

振动振荡机：液压振动振荡，可转换，电控延时起振，压实性能好；

3、液压转向，铰接式车架，操作轻便灵活；

4、配置防腐大容量洒水箱，电控压力喷洒水系统；

5、液压元件采用知名品牌，性能可靠；

6、配有可供选购的平板拖车，便于施工转移；

7、配置高原型柴油机。

Main Features

1.Mechanical drive, two-speed gears.

2. Vibratory roller: Hydraulic vibration, electronic controlled starting of vibration, great exciting force with high compacting efficiency.

Vibratory oscillatory roller: hydraulic vibration oscillation, convert the vibration and oscillation function freely, electronic controlled

delayed starting of vibration with good compaction performance.

3. Hydraulic steering, articulated frame for flexible operation.

4. Equipped with electronic control pressurized water spraying system, high volume anti-corrosive water tank.

5. Equipped with imported famous brand hydraulic components with reliable performance.

6. A trailer is provided for convenient transportation.

7. The altitude turbocharged diesel engine is also optional.

结构特点
施工案例
