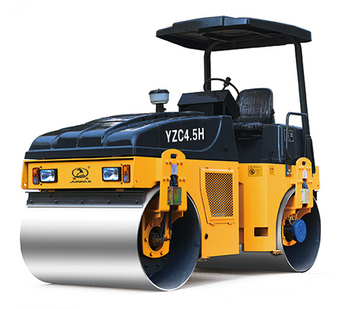

骏马YZC4.5H/YZDC4.5H全液压双钢轮振动/振动振荡压路机

技术参数

YZC4.5H/YZDC4.5H全液压双钢轮振动/振动振荡压路机

YZC4.5H/YZDC4.5H FULL HYDRAULIC DOUBLE DRUM VIBRATORY ROLLER/VIBRATORY OSCILLATORY ROLLER

产品型号	YZC4.5H	产品型号	YZDC4.5H
工作质量kg	4500	工作质量kg	4600
压实宽度mm	1320	压实宽度mm	1320
振动频率Hz	50	振动/振荡频率Hz	50
理论振幅mm	0.5	理论振幅/荡幅mm	0.5/0.56
激振力kN	42	激振力/激振力矩kN/ kN.m	42 /13
行驶速度km/h	0～10	行驶速度km/h	0～10
发动机型号	ZN490、4L68
发动机功率/转速kW/rpm：	33.5/2600
外形尺寸mm（长×宽×高）	3120×1460×2560



Product model	YZC4.5H	Product model	YZDC4.5H
Operating Weight (kg)：	4500	Operating Weight (kg)：	4600
Rolling width (mm)：	1320	Rolling width (mm)：	1320
Vibration frequency (Hz)：	50	vibration/oscillation  frequency （Hz)	50
Theoretical amplitude of vibration (mm)：	0.5	Theoretical amplitude of  vibration/oscillation （mm）	0.5/0.56
Exciting force  (kN)：	42	Exciting force/Exciting Torque (kN/ kN.m)	42 /13
Travel speed (km/h)：	0～10	Travel speed (km/h)：travel speed (km/h)：	0～10
Engine model：	ZN490、4L68
Engine power/speed （kw/rpm）：	33.5/2600
Overall dimensions  (mm) （LWH）	3120×1460×2560

性能特点

适用范围

适用于高等级公路和城市道路、城际及县乡公路、水利工程、体育和其它工业场

地等一般路面沥青面层的压实和修补；

振动振荡机更适用于桥面等不宜采用振动压实场地的沥青面层压实和修补。

Applications

Compacting and repairing the general road base and asphalt pavement in city road, inter-city and township road, water conservancy project, sports and other industrial site and so on. The vibratory oscillatory roller is more suitable for compacting and repairing of bridge surface asphalt pavement which is unfit to compact by vibratory roller.

性能特点

1、液压双轮驱动，无级变速；

2、振动机：液压双轮振动，电控起振，激振力大，压实性能好；

振动振荡机：具有液压振动/振荡两种功能，压实性能好；

3、液压转向，铰接式车架，操作轻便灵活；

4、配置防腐洒水箱，电控压力喷洒水系统；

5、液压行走制动，电控盘刹停车制动，安全可靠；

6、前机罩大角度开启，维修保养触手可得；

7、主要液压元件采用进口国际知名品牌，性能可靠；

8、配有可供选购的平板拖车，便于施工转移；

9、可选配进口Kubota（久保田）柴油机。

Main features

1. Hydraulic double drum drive, infinitely variable speed.

2. Vibratory roller: Hydraulic double drum vibration, electronic controlled starting of vibration, great exciting force

withhigh compacting efficiency.

Vibratory oscillatory roller: vibration and oscillation two functions, with good compaction performance.

3. Hydraulic steering, articulated frame for flexible operation.

4. Equipped with electronic control pressurized water spraying system, high volume anti-corrosive water tank.

5. Hydraulic service brake, electronic self-locking parking brake, safe and reliable.

6. The front cover can be turned up in a big angel for easily maintenance.

7. Equipped with imported famous brand hydraulic components with reliable performance.

8. A trailer is provided for convenient transportation.

9. Imported Kubota engine is optional for you.
