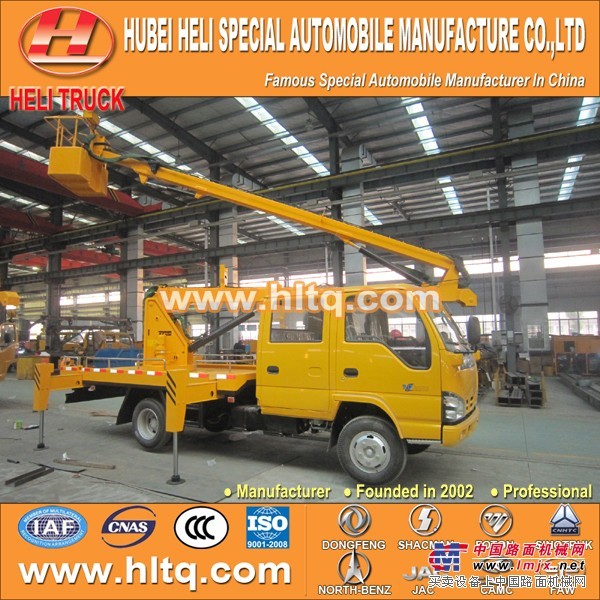

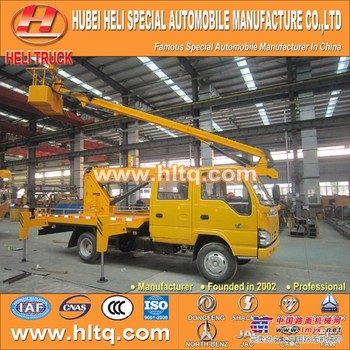

合力厂家供应五十铃14米高空作业车 18307226508

￥

210000元/ 件

共被查看 28 次

更新日期:2016-06-02

有效期至:2016-11-29

产品品牌：

规格型号：HLQ5070GJKQ

价格：210000元/

所在地区 : 湖北随州

产品分类 : 高空作业车

Vehicle parameters www.hltq.com
Vehicle Model		HLQ5070GJKQ	Vehicle Brand	HELI
Overall dimensions		7150×2000×3050mm	Curb weight	5785kg
Manufacturer	Hubei Heli Special Automobile Manufacture Co.,Ltd

Chassis parameters www.hltq.com
Chassis model			QL1070A1HWY	Chassis brand	ISUZU
Overall dimensions			5900X1880X2160mm	Wheel base	3360mm
Front/rear wheel track			1504/1425mm	Front/rear suspension	1015/1525mm
Approach/departure angle			24/16°	Maximum speed	105km/h
Chassis Manufacturer			QingLing Motors (Group) Co., Ltd.
Cab	Configuration		600P, double row cab, allowable 3 passengers, air conditioner, USB radio interface,car interior
	Color		White,other color is optional
Engine	Model		4KH1-TCG40
	Emission		Euro 4
	Type		4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,4-valve,diesel engine
	Rated power		120hp,rated power speed 3400rpm
	Displacement		2999ml
	Manufacturer		Isuzu Engine (Chongqing) Co., Ltd.
Tire	Size		7.00-15 10PR nylon tire
	Number		6+1 nos
Frame	172X65(4+3)mm
Front axle	2.5 tons
Rear axle	4.8 tons
Drive form	4X2
Suspension	Multi leaf springs
Rated voltage	24V,DC
Transmissions	Isuzu MSB five speed transmission, 5 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration		small tonnage:650R16,big tonnage:700R16
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Aerial work truck structure parameters www.hltq.com

Max operation height

14.0m

Max working platform height

12.0m
