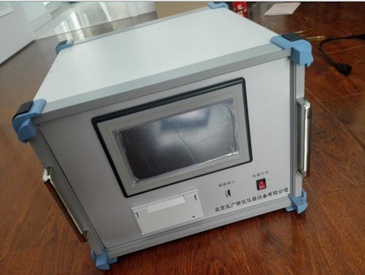

电导率法总有机碳分析仪 在线TOC测试仪

电导率法总有机碳分析仪 在线TOC测试仪  ​总有机碳（TOC）分析仪采用的双波长红外外氧化技术，精度高、灵敏度高。高性能CPU，触摸屏智能化控制，具有离线分析和在线分析选配功能，配制外置式打印机，人性化的设计理念，更换UV灯和泵管不用拆开机箱，操作简单、方便，实现了分析仪器国产化。符合《中国药典》2010版附录 VIII R制药用水中总有机碳测定法，满足药典对仪器的要求：①TOC=TC-TIC，②系统适用性试验，③检测灵敏度（等于或小于0.001mg/L）。

电导率法总有机碳分析仪 在线TOC测试仪  主要配置

主机  一台

触摸屏  （镶嵌到仪器中）

微型打印机    一台

进样管    一条

电源线   一套

产品说明书   一份

产品合格证   一份

产品装箱单   一份

环境要求

仪器应在一个恒温恒湿且适于工作的环境中进行。避免阳光直射和超常温度；温度过高（超过104°F，40℃）会导致运行失常，温度过低（低于50°F，10℃）会导致测量值误差过大。

使用与操作方法

开始检测并计入检测次数，检测完毕后显示后一次检测结果，其中几次检测的结果均自动保存在查询记录当中。检测次数的设置方式为：用“选择”键移动光标，用“设置”键修改数字，按“确定”键进行确认，进入分析界面。先进行四次冲洗过程

工作原理

本仪器采用紫外氧化的原理，将样品中的有机物氧化为二氧化碳，二氧化碳的测试采用的是直接电导率法，通过测试经过氧化反应的样品的总碳含量和未经过氧化反应的样品总无机碳的含量差值来测定总有机碳含量，即：总有机碳（TOC）=总碳（TC）-总无机碳（TIC）。

易耗品更换周期

UV灯和蠕动泵管可以从本公司购买。UV灯为185nm、254nm双波长紫外灯，蠕动泵管为进口泵管，具有高品质和良好的稳定性。易耗品更换周期参考表5.1。

表5.1  易耗品维护/更换表

储运

71 包装后的TOC分析仪应储存在相对湿度不大于80%，无腐蚀性气体且通风良好、阴凉、清洁的室内。

2 运输按订货合同要求，避免碰撞及受潮。

3 若对本仪器进行重新拆卸与安装，请联系仪器制造商，由专业技术人员协助解决。

安全措施忠告：

1．请保证电源可靠接地；

2．电源电缆线的线径 > 2.5 mm2；

3．请勿将仪器浸泡于水或其它液体中。

主要特征:

①　★高精度、高灵敏度，操作简单。

②　★人性化操作界面，有一键运行功能，自动管路清洗功能。

③　★高性能CPU，触摸屏设计，超大640*480点阵真彩显示器。

④　★不用拆开机箱更换UV灯和泵管。

⑤　★检测上限可设定，自动上限报 功能。

⑥　★具有RS232数据接口，历史数据可存储6个月。

⑦　★离线检测和在线检测可选配。

⑧　★具有打印功能

Total organic carbon (TOC) analyzer adopts double wavelength red external oxidation technology, with high accuracy and sensitivity. High performance CPU, touch screen intelligent control, offline analysis and online analysis matching function, external printer, humanized design concept, UV lamp and pump tube replacement without disassembling the chassis, simple and convenient operation, and localization of analysis instrument. It complies with the determination method of total organic carbon in pharmaceutical water prepared in Appendix VIII r of the Chinese Pharmacopoeia (2010 Edition), and meets the requirements of the pharmacopoeia for instruments: ① TOC = tc-tic, ② system suitability test, and ③ detection sensitivity (equal to or less than 0.001mg/l).

Main configuration

One host

Touch screen (embedded in the instrument)

One micro printer

One injection tube

One set of power cord

One copy of product manual

One product certificate

Product packing list (copy)

Environmental requirements

The instrument shall be operated in a constant temperature and humidity environment suitable for operation. Avoid direct sunlight and abnormal temperature; Too high temperature (over 104 ° F, 40 ° C) will lead to abnormal operation, and too low temperature (below 50 ° F, 10 ° C) will lead to excessive measurement error.

Usage and operation method

Start the detection and count the detection times. After the detection, the last detection result is displayed. The results of several tests are automatically saved in the query record. The setting method of detection times is: use the "select" key to move the cursor, use the "set" key to modify the number, press the "OK" key to confirm and enter the analysis interface. Conduct four flushing processes first

working principle

The instrument adopts the principle of ultraviolet oxidation to oxidize the organic matter in the sample into carbon dioxide. The direct conductivity method is adopted for the carbon dioxide test. The total organic carbon content is determined by testing the difference between the total carbon content of the sample after oxidation reaction and the total inorganic carbon content of the sample without oxidation reaction, that is, total organic carbon (TOC) = total carbon (TC) - Total inorganic carbon (TIC).

Replacement cycle of consumables

UV lamps and peristaltic pump tubes can be purchased from our company. The UV lamp is a 185nm and 254nm dual wavelength UV lamp, and the peristaltic pump tube is an imported pump tube, with high quality and good stability. Refer to table 5.1 for the replacement cycle of consumables.

Table 5.1 maintenance / replacement of consumables

Part name: replacement cycle*

UV lamp (12 months)

Peristaltic pump tube (12 months)

storage and transportation

71 the packaged TOC analyzer shall be stored in a well ventilated, cool and clean room with relative humidity no more than 80%, no corrosive gas.

2. The transportation shall comply with the requirements of the order contract to avoid collision and dampness.

3 if the instrument is disassembled and installed again, please contact the instrument manufacturer for assistance from professional technicians.

Advice on safety measures:

1. Please ensure that the power supply is reliably grounded;
2. The wire diameter of power cable is > 2.5 mm2;
3. Do not immerse the instrument in water or other liquids.

Main features:

① ★ high precision, high sensitivity and simple operation.

② ★ humanized operation interface, with one key operation function and automatic pipeline cleaning function.

③ ★ high performance CPU, touch screen design, large 640 * 480 dot matrix true color display.

④ ★ replace the UV lamp and pump pipe without disassembling the chassis.

⑤ ★ the detection upper limit can be set, and the automatic upper limit alarm function.

⑥ ★ with RS232 data interface, historical data can be stored for 6 months.

⑦ ★ offline detection and online detection are optional.

⑧ ★ with printing function

公司承诺：

1.购机前，我们专门派技术人员为您设计的流程和方案

2.购机后，将免费指派技术人员为您调试安装

3.整机保修一年，产品终身维护

4.常年供应设备的易损件及耗品确保仪器能长期使用

5、售后管理：我公司实现计算机化管理，实行客户定期电话回访制度，定期复查设备的工作情况，定期电话指导用户对设备进行保养和检测，以便设备正常运转， 客户的设备使用情况，以便及时对设备进行维护

6、物流情况：及时提供货源，确保全国范围内2-10内到货，持续稳定地为代理商做全面服务工作，提供合理的运作空间。公司有专业的技术人员为您安装指导。

7、软件升级：终生免费提供新版本控制软件。

8、安装培训:仪器包装内附有说明书，专业培训人员为客户指定操作者讲解仪器正常操作流程、操作注意事项及仪器的日常维护要求；也可以根据客户要求提供 培训服务。
